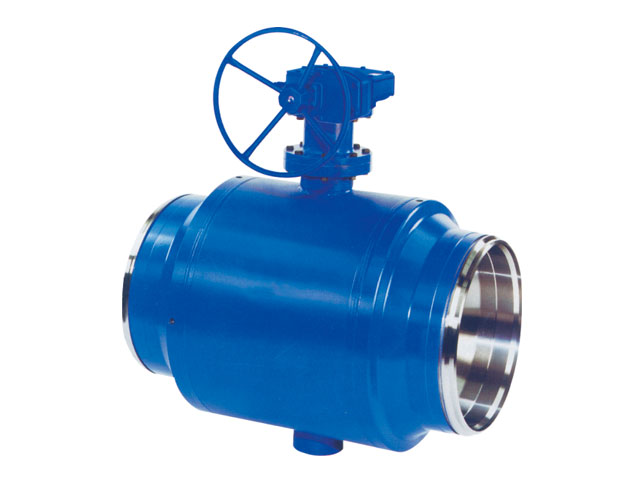

Fully Welded Ball Valve

Design standard: API 6D
Length of structure: API 6D/ASME B16.10. For product beyond the scope of the standard, it shall be manufactured by specifications in JINGDONG standard or user's requirements.
Flange connecting end: ASME B16.5/ASME B16.47
Butt welding connecting end: ASME B16.25/ ASME B31.8
Wall thickness: ASME B16.34
Fireproof test: API 607/API 6FA
Inspection and test: API 6D
Pressure and temperature rating: ASME B16.34
Product scope: NPS 1-1/2″~NPS 60″,CL150~CL2500
Main body material:A105､LF2､etc.
Valve seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL､HNBR､FKM letc.
Drive device: handle, worm wheel, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc.
